PIPE RELINING
CENTRAL COAST
Trenchless pipe relining and patching that repairs broken, leaking or root-damaged underground pipes without digging up your lawn, driveway or tiles. A seamless new pipe is formed inside the old one — backed by a 35-year guarantee.
FIX UNDERGROUND PIPES WITHOUT DIGGING UP YOUR PROPERTY
Dealing with broken, cracked or root-riddled underground pipes on the Central Coast? Blocked Drains Central Coast carries out seamless, long-lasting trenchless pipe relining and targeted pipe patching. We bring your sewer and stormwater lines back to better-than-new condition — without wrecking your lawn, driveway or bathroom tiles.
Backed by our 35-Year Guarantee and over two decades of hands-on local experience, our licensed techs use advanced inverted epoxy liners and silicate resin patches for a permanent, dig-free repair.
Upfront Fixed Quotes
Clear, transparent pricing with $0 call-out fee* before work begins.
Done in 1 Day
Most relining and sectional patching jobs wrapped up within 4 to 8 hours.
35-Year Structural Guarantee
Rock-solid guarantee against structural failure, leaks, and tree root ingress.
Root-Proof Seamless Seal
Creates a continuous jointless lining that tree roots can never penetrate.
Fully Licensed Relining Techs
Certified, background-checked plumbers with specialist relining gear (Lic: 360180C).
100% Lifetime Labour Guarantee
Complete peace of mind on all workmanship and relining installations.
TRENCHLESS RELINING VS. TRADITIONAL EXCAVATION
See why Central Coast property owners are switching from destructive traditional pipe replacement to modern no-dig pipe relining and patching.
Traditional Dig & Replace
- Destructive Excavation: Requires tearing up lawns, manicured gardens, driveways, or tiled flooring.
- Massive Hidden Costs: Thousands extra spent on landscape reinstatement, concrete repaving, or bathroom tile replacement.
- Disruptive & Slow: Heavy machinery, noisy jackhammers, open trenches, and multiple days of property disruption.
- Weak Rubber Couplings: Pipe joins often rely on rubber adapters underground that degrade and allow tree root re-entry within years.
Trenchless Pipe Relining & Patching
- Zero Property Damage: Accessed via existing boundary shafts or keyholes — lawns, gardens, and paving stay untouched.
- Fixed All-Inclusive Cost: No reinstatement bills, no landscaper hire, and no expensive concrete pouring required.
- Same-Day Completion: Most jobs installed, cured, tested, and fully functional in under 8 hours.
- 35-Year Structural Guarantee: Creates a continuous, rock-hard resin pipe that tree roots cannot penetrate.
FULL PIPE RELINING VS. LOCALIZED PIPE PATCHING
We diagnose your drain damage with high-definition CCTV cameras to recommend the exact solution you need — so you don't overspend.
Full Inversion Pipe Relining
Ideal for longer runs of severely cracked, root-damaged, or ageing clay/cast iron drains. A continuous resin-coated woven sleeve is inverted into the entire pipe run using compressed air or water pressure, forming a brand new jointless pipe inside.
Best Suited For:
Localized Pipe Patching (Sectional)
When damage is isolated to a single spot or joint, pipe patching is the most cost-effective fix. A durable silicate resin fibreglass patch wrapped around an inflatable packer is positioned precisely over the break, sealing the crack permanently without relining the entire line.
Best Suited For:
PRESERVE YOUR BACKYARD, DRIVEWAY & TILES
You've invested time and money into your Central Coast property's landscaping, paving, driveways, and indoor tiles. Traditional plumbers often recommend digging a massive trench through your garden beds or smashing up hand-laid bathroom floor tiles to reach underground pipes.
With Blocked Drains Central Coast, our specialist trenchless pipe relining and patching tech repairs underground pipes directly beneath:
INSIDE THE NO-DIG PIPE RELINING TECHNOLOGY
Explore how a multi-layer epoxy resin system forms a brand-new, root-proof structural pipe directly inside your damaged host pipe.
1. Existing Host Pipe (Clay, PVC, Steel, Concrete)
Host StructureYour original damaged drain stays underground and acts as the structural host guide. No excavation needed to remove it.
2. Epoxy Resin Mechanical Bond
Root-Proof SealSpecialist silicate or epoxy matrix expands tightly into every crack and joint, forming a 100% airtight and watertight adhesion.
3. Cured-In-Place Structural Textile Liner
50+ Year LifeSeamless felt or glass fibre sleeve impregnated with premium two-part epoxy resin. Once cured, it forms an independent self-supporting pipe.
4. Glass-Smooth Hydraulic Inner Core
Max Flow RateSlick non-porous interior surface cuts friction, preventing waste build-up and boosting water flow capacity by up to 30%.
BEFORE & AFTER CCTV DRAIN CAMERA COMPARISON
Drag the slider to compare what our high-definition CCTV diagnostic cameras see before and after our trenchless relining treatment.

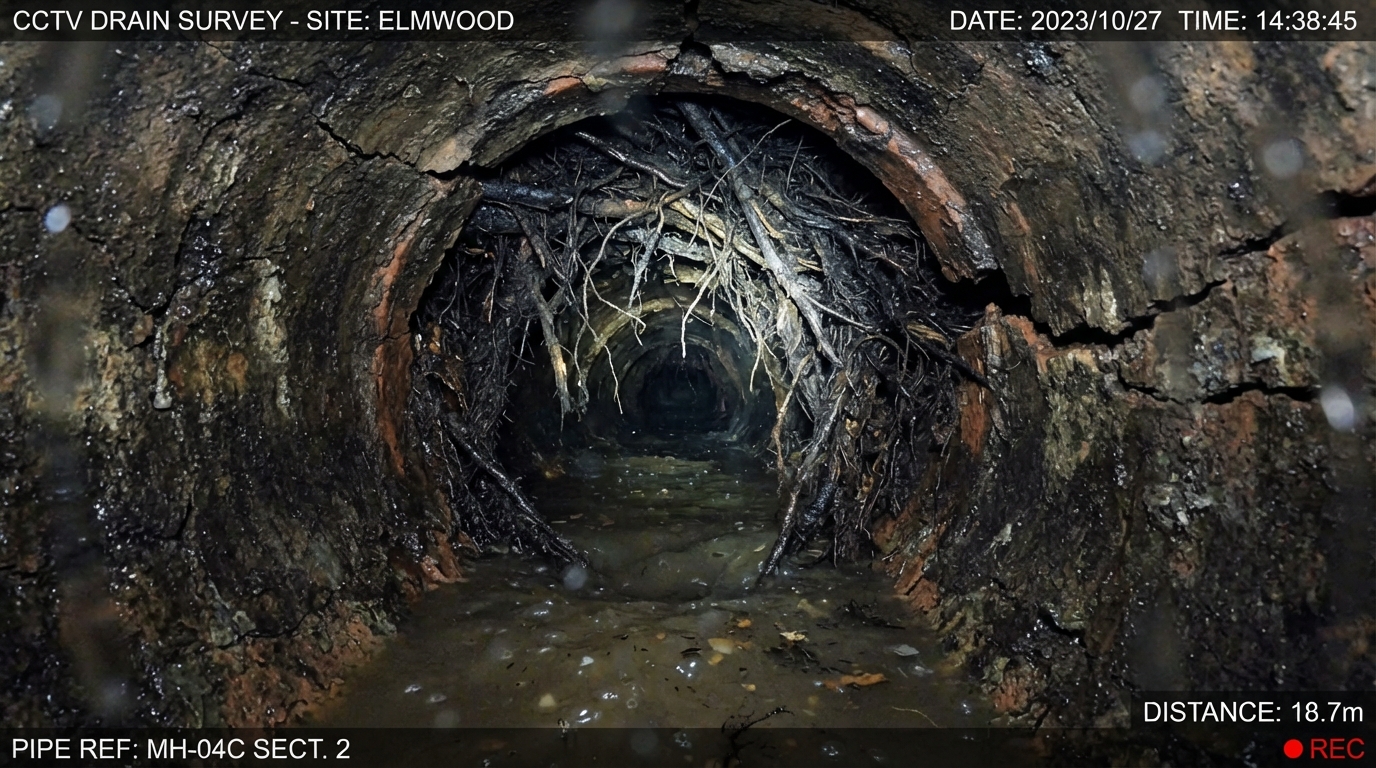

Severe Root Intrusion & Cracks
Standard earthenware sewer pipe damaged by tree roots on the Central Coast.
- Aggressive tree roots growing through pipe joints
- Longitudinal fractures allowing sewer gas & water leaks
- Recurrent sewage backups & foul outdoor odours

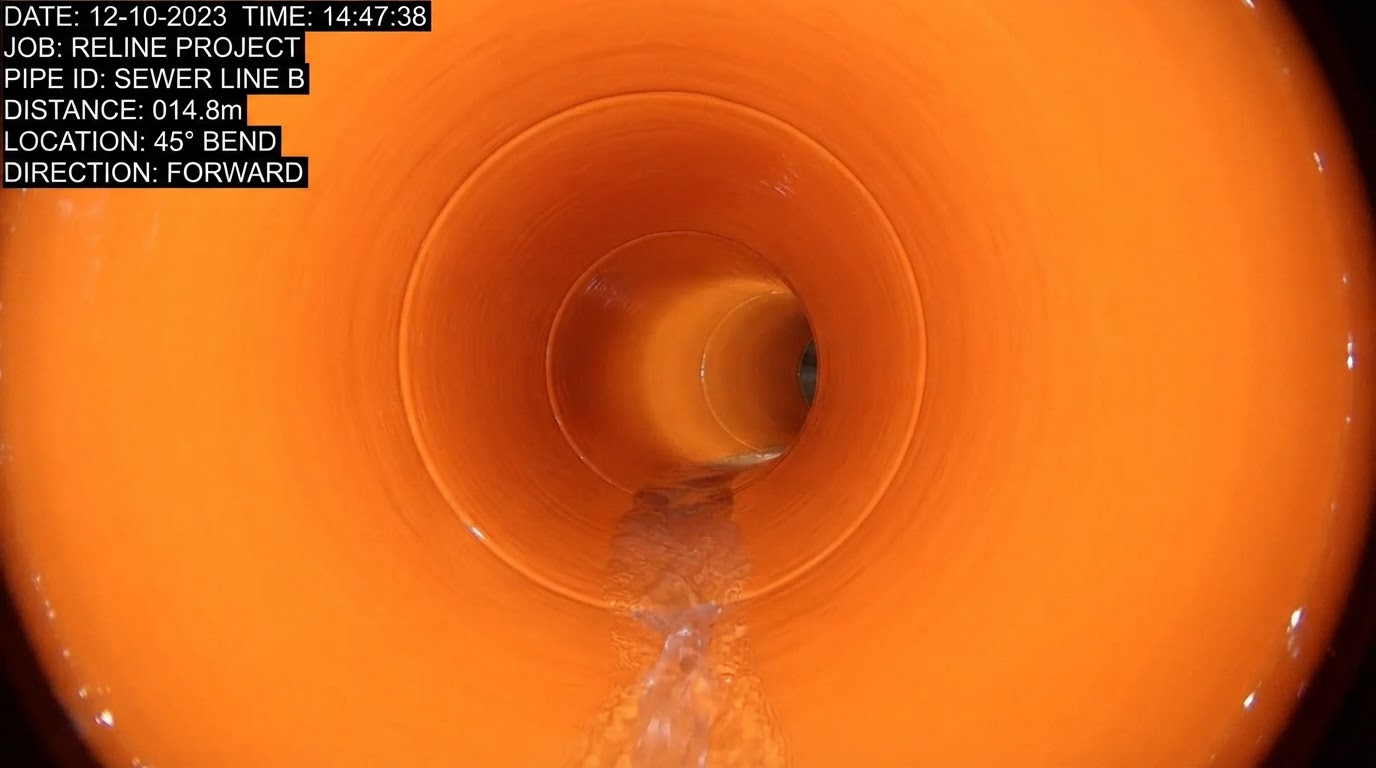

Seamless Jointless Epoxy Core
Fully cured epoxy liner forming a continuous, root-proof wall.
- 100% jointless continuous surface — zero root entry points
- Super smooth hydraulic lining boosts flow speed & prevents clogs
- 35-Year Structural Guarantee & USB video footage provided
OUR 4-STEP TRENCHLESS RELINING PROCESS
How Blocked Drains Central Coast transforms your broken pipes in just a few hours with minimal disruption.
1. HD CCTV Inspection
We insert a high-definition drain camera to locate cracks, root intrusion, or collapsed pipe sections and map the exact repair zone.
2. High-Pressure Jet Clean
Using high-pressure water jetters and robotic cutters, we clear out all tree roots, scale, and debris to restore full internal diameter.
3. Liner Inversion & Curing
The epoxy resin-impregnated liner or sectional patch is inverted into place and inflated, setting into a seamless rock-hard structural pipe.
4. Final Verification & USB
We run a final CCTV inspection to verify perfection, supply you with the video recording on USB, and issue your 35-Year Guarantee.
WHAT PIPE MATERIALS CAN BE RELINED?
Our trenchless relining tech works on virtually every pipe type found on Central Coast properties — from heritage homes to modern builds.
Earthenware / Clay
Ø 100–300mmMost common in pre-1990s Central Coast homes. Prone to root intrusion at joints.
Cast Iron
Ø 50–150mmFound in older homes and commercial buildings. Corrodes internally, reducing flow.
PVC / uPVC
Ø 40–225mmModern standard. Can crack from ground movement or impact damage.
Concrete / FC
Ø 150–450mmUsed in main sewer and stormwater lines. Susceptible to hydrogen sulphide erosion.
Galvanised Steel
Ø 40–100mmOlder water supply lines. Internal rust build-up restricts water flow over decades.
Copper
Ø 15–50mmPremium water lines. Can develop pinhole leaks from pitting corrosion.
VC / Vitrified Clay
Ø 100–375mmHeavy-duty sewer pipes. Joints shift over time allowing root intrusion.
HDPE / Poly
Ø 40–300mmFlexible modern pipe. Can suffer from impact damage or joint separation.
HOW MUCH YOU SAVE WITH TRENCHLESS RELINING
Traditional excavation doesn't just cost more — it tacks on hidden restoration expenses that can double your bill.
Traditional Excavation
Typical sewer line replacement
Trenchless Pipe Relining
Same sewer line — no digging
THE RESIN CURING PROCESS EXPLAINED
Understanding the three curing methods we use to transform liquid epoxy into a rock-hard structural pipe.
Hot Water Curing
Heated water is circulated through the inflated liner to accelerate the epoxy chemical reaction. Ideal for pipes 100mm–225mm and provides uniform, controlled curing even in cooler ground temperatures common on the Central Coast.
Steam Curing
Pressurised steam is injected for rapid curing in larger diameter pipes (225mm+). Faster set time makes it ideal for emergency commercial and strata repairs where downtime must be minimised.
Ambient / UV Curing
Uses ambient temperature or UV light for smaller diameter patch repairs. Perfect for localized pipe patching where access is limited and energy efficiency is a priority.
Epoxy Resin (Full Relining)
Two-part premium epoxy with a 50+ year design life. Cures to a rigid, self-supporting structural pipe independent of the host pipe. Used for full inversion relining of entire pipe runs.
Silicate Resin (Patching)
Fast-curing silicate resin on fibreglass matting for targeted sectional patch repairs. Bonds permanently to the host pipe wall, sealing cracks and holes with minimal diameter reduction.
6 COMMON PIPE PROBLEMS WE FIX WITHOUT DIGGING
If you're experiencing any of these issues, trenchless pipe relining can permanently resolve them — no excavation required.
Tree Root Intrusion
Roots seek moisture from sewer pipe joints. They grow inside, blocking flow and cracking the pipe wall. Relining seals all entry points permanently.
Cracked or Fractured Pipes
Ground movement, ground subsidence, or heavy vehicle loads above can cause longitudinal or circumferential cracks in underground pipes.
Recurring Blockages
If you're calling a plumber every few months to clear the same drain, there's likely a structural defect. Relining fixes the root cause, not just the symptom.
Collapsed or Deformed Pipe
Ageing earthenware or cast iron pipes can partially collapse, restricting flow. Our liners can bridge collapsed sections and restore full capacity.
Sewer Gas Odours
Cracks allow sewer gases to escape underground and rise through soil into your yard or home. A seamless relined pipe eliminates all gas leaks.
Joint Separation
Older pipes rely on rubber ring or cement joints that degrade over time. Relining creates a continuous jointless pipe, eliminating all weak points.
WHY PIPE RELINING IS GREENER THAN EXCAVATION
Trenchless pipe relining isn't just better for your property — it's significantly better for the environment. By cutting out excavation, we dramatically reduce carbon emissions, landfill waste, and ecosystem disruption.
Less CO₂ Emissions
No heavy excavation machinery, trucks, or concrete production needed.
Landfill Waste
Old pipes stay in the ground — zero concrete, soil, or rubble sent to landfill.
Root-Proof Seal
Eliminates recurring root intrusion without chemical tree root killers.
Design Lifespan
A permanent fix means fewer future repairs and less resource consumption.
Your garden stays intact. Zero dig. Zero mess.
WHAT YOU CAN TRY — & WHEN TO CALL US
A few simple pipe relining fixes are safe to try yourself. But the moment things get tricky, dangerous or keep coming back, it's time to bring in the licensed crew at Blocked Drains Central Coast.
Safe to Try Yourself
Quick, low-risk steps to attempt first
- Don't plant large trees or shrubs over known sewer or stormwater lines.
- Get an annual CCTV inspection to catch cracks and root intrusion before they worsen.
- Avoid pouring chemicals that can degrade older earthenware or clay pipes.
- Keep a record of your property's drainage plan if you have one.
Stop & Call Us Instead
When DIY won't cut it — or could make it worse
- A CCTV inspection has found cracks, root intrusion or a collapsed section of pipe.
- Your drain keeps blocking because the pipe is damaged — relining seals it permanently.
- You want to repair an underground pipe without digging up your driveway, lawn or tiles.
- Relining uses specialist epoxy resins, inversion equipment and curing — it's strictly licensed work.
- You want a long-term fix backed by a 35-year guarantee rather than repeated clears.
Tip: Never pour harsh chemical drain cleaners down your pipes — they rarely clear a real blockage, damage older pipes and are dangerous to handle. If a plunger or hot water hasn't worked in 10 minutes, call a licensed professional.
